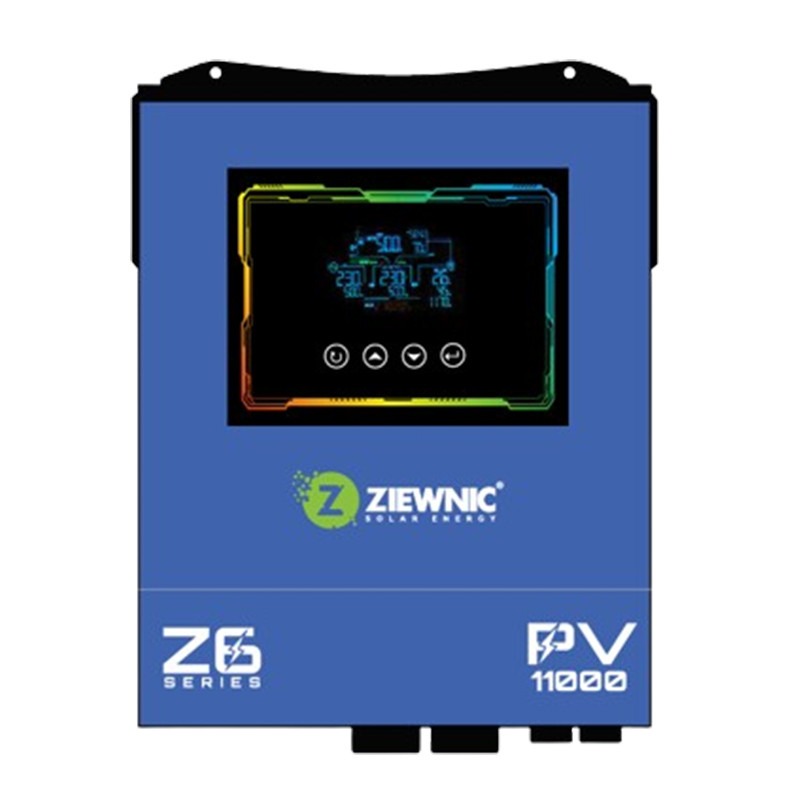

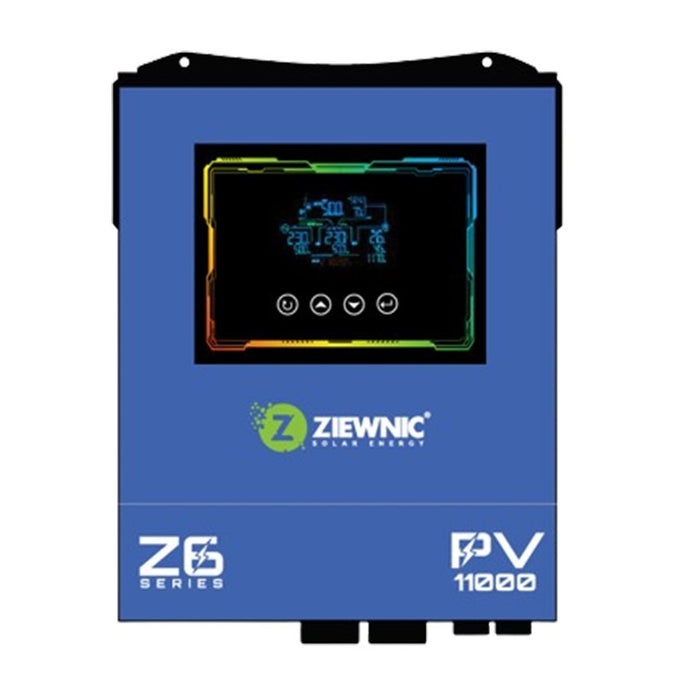

ZIEWNIC Z6 Series Hybrid Inverter 8.5 (KVA) PV 11000 On Grid With Energy Storage Hybrid 6G European With Official Warranty
ZIEWNIC Z6 Series Hybrid Inverter 8.5 (KVA) PV 11000 On Grid With Energy Storage Hybrid 6G European With Official Warranty

ZIEWNIC Z6 Series Hybrid Inverter 8.5 (KVA) PV 11000 On Grid With Energy Storage Hybrid 6G European With Official Warranty

      • SPECIFICATION
        Max. PV Input Power 11000W
        GRID TIE OPERATION
        PV INPUT ( DC )
        Rated AC Output Power 8500W
        Nominal DC Volt/Max DC Voltage 360VDC/450VDC
        Start-up Voltage/initial Feeding Voltage 120VDC
        MPPT Voltagve Range 90-450VDC
        Np. of MPPT Tracker/Max Input Current 2/18A (5500W * 2)
        GRID OUTPUT ( AC )
        Nominal Output Volt 220 Vac/230Vac/240Vac, Single Phase
        Output Voltage Range 184V-256Vac or 195-253V (Selectable)
        Nominal Output Current 38A
        Power Factor >09
        EFFICIENCY
        Max. Conversion Efficiency (DC/AC) 98%
        OFF-GRID OPERATION
        AC INPUT (AC)
        AC Start-up Voltage/Auto Restart Volt. 120Vac-1 40Vac/180Vac
        Acceptable Input Voltage Range 90-280Vac or 170-280Vac
        Max. AC Input Current 63A
        PV INPUT (DC) Off-Grid
        Max. DC Voltage 450VADC
        MPPT Voltage Range 90-450VDC
        No. of MPPT Tracker/Max. Input Current 2/18A (5500W * 2)
        GRID TIE MODE
        Nominal Output Volt 220Vac/230Vac/240Vac, Single Phase
        Feed-in Voltage Range 184V-256Vac
        Max Efficiency DC/AC >95%
        BATTERY MODE OUTPUT ( AC )
        Nominal Output Volt 220Vac/230Vac/240Vac
        Waveform Pure Sine Wave
        Efficiency (DC to AC) 93%
        HYBRID OPERATION
        PV INPUT (DC) HYBRID
        Nominal DC Volt/Max DC Voltage 360VDC/450VDC
        Start-up Voltage Initial Feeding Voltage 120VDC
        MPPT Voltage Range 90-450VDC
        No. of MPPT Tracker/Max. Input Current 2/18A (5500W * 2)
        GRID OUTPUT ( AC ) HYBRID
        Nominal Output Volt 220Vac/230Vac/240Vac, Single Phase
        Output Voltage Range 184V-265Vac or 195-253V (Selectable)
        Nominal Output Current 38A
        AC INPUT (AC) HYBRID
        AC Start-up Volateg/Auto Restart Volt. 120Vac-1 40Vac/180Vac
        Acceptable Input Voltage Range 90-280Vac or 170-280Vac
        Max. AC Input Current 63A
        BATTERY MODE OUTPUT ( AC ) HYBRID
        Nominal Output Volt 220Vac/230Vac/240Vac
        Waveform Pure Sine Wove
        Efficiency (DC to AC) 93%
        BATTERY & CHARGER
        Battery Type Supported 48VDC
        Nominal Battery Voltage 120A
        Max Solar Charge Current 120A
        Max AC Charge Current 120A
        Max Total Charge Current 120A
        GENERAL
        PHYSICAL
        Product Dimension D X W X H (mm) 530*415*149
        Product Net Weight (kgs) 19.4
        Product Gross Weight (kgs) 21.6
        Packing Dimension D x W x H (mm) 690 x 550 x 242mm. 1PC/CTN
        Parallel Function Optional Yes Optional, Max 6Pcs
        Communication Interface RS232. USB. Wi-F. Touch LCD
        ENVIRONMENT
        Humidity 5% to 95% Relative Humidity (Non-Condensing)
Write a review
Save -1% Rs.395,799.00 Rs.400,000.00
Rs.395,799.00

2 to 4 Days

In Stock

Ziewnic

Notify Me
wishlist
compare
Print
Price Beating Price Beating Policy
Warranty 7 Days Replacement Warranty
