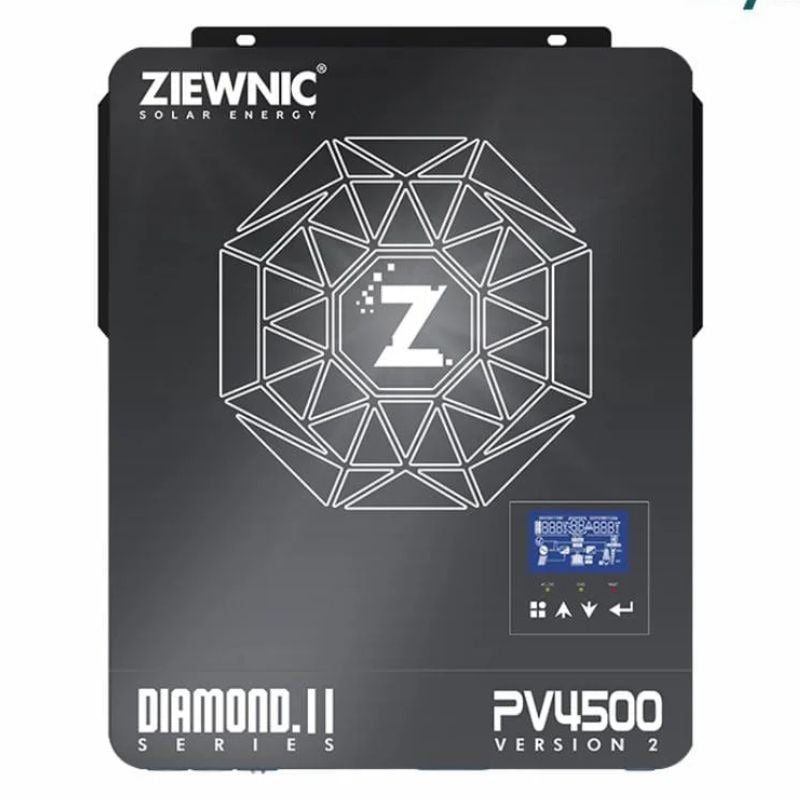

ZIEWNIC Diamond Solar Hybrid Inverter 6G 3.2KVA (PV4500) 100% Pure Sine Wave Solar Inverter 5 Years Brand With Official Warranty
-
-
SPECIFICATION Rated Power 3200VA AC Input Ac Input 230 VAC Voltage 170~280 VAC (For Personal Computer) Selectable Voltage Range 90~280VAC (For Home Appliances) Frequency Range 50 HZ / 60 HZ (Auto Sensing) AC OUTPUT AC Voltage Regulation 230 VAC + 5% Nominal Current Output 14.54A Efficiency (Peak) PV to INV 97% Efficiency (Peak) Battery to INV 94% Transfer Time 10ms Typical(MS); 20ms Stapical( Appliances) BATTERY AND AC CHARGER Battery Voltage 24 VDC Floating Charge Voltage 27 VDC Overcharge Protection 33 VDC Maximum AC Charge Current 80A SOLAR CHARGER Maximum PV Array Power 4500W MPPT Range @ Operating Voltage 55-430 VDC Maximum PV Array Open Circuit Voltage 430 VDC Maximum Charge Current TRUE (MPPT) 80A Maximum PV Input Current 18A Maximum Efficiency 98% PHYSICAL Communication Interface RS323/GPRS/Wi-Fi OPERATING ENVIRONMNET Humidity 5% to 95% Relative Humidity (Non~Condensing) Operating Temperature 0°C~55°C Storage Temperature -15°C-~60°C
-
Regular price
Save -8%
Rs.91,999.00
Rs.100,000.00
Regular price
Rs.91,999.00
Price Beating Policy
7 Days Replacement Warranty
Genuine Product
Description
-
-
SPECIFICATION Rated Power 3200VA AC Input Ac Input 230 VAC Voltage 170~280 VAC (For Personal Computer) Selectable Voltage Range 90~280VAC (For Home Appliances) Frequency Range 50 HZ / 60 HZ (Auto Sensing) AC OUTPUT AC Voltage Regulation 230 VAC + 5% Nominal Current Output 14.54A Efficiency (Peak) PV to INV 97% Efficiency (Peak) Battery to INV 94% Transfer Time 10ms Typical(MS); 20ms Stapical( Appliances) BATTERY AND AC CHARGER Battery Voltage 24 VDC Floating Charge Voltage 27 VDC Overcharge Protection 33 VDC Maximum AC Charge Current 80A SOLAR CHARGER Maximum PV Array Power 4500W MPPT Range @ Operating Voltage 55-430 VDC Maximum PV Array Open Circuit Voltage 430 VDC Maximum Charge Current TRUE (MPPT) 80A Maximum PV Input Current 18A Maximum Efficiency 98% PHYSICAL Communication Interface RS323/GPRS/Wi-Fi OPERATING ENVIRONMNET Humidity 5% to 95% Relative Humidity (Non~Condensing) Operating Temperature 0°C~55°C Storage Temperature -15°C-~60°C
-
-
-
SPECIFICATION Rated Power 3200VA AC Input Ac Input 230 VAC Voltage 170~280 VAC (For Personal Computer) Selectable Voltage Range 90~280VAC (For Home Appliances) Frequency Range 50 HZ / 60 HZ (Auto Sensing) AC OUTPUT AC Voltage Regulation 230 VAC + 5% Nominal Current Output 14.54A Efficiency (Peak) PV to INV 97% Efficiency (Peak) Battery to INV 94% Transfer Time 10ms Typical(MS); 20ms Stapical( Appliances) BATTERY AND AC CHARGER Battery Voltage 24 VDC Floating Charge Voltage 27 VDC Overcharge Protection 33 VDC Maximum AC Charge Current 80A SOLAR CHARGER Maximum PV Array Power 4500W MPPT Range @ Operating Voltage 55-430 VDC Maximum PV Array Open Circuit Voltage 430 VDC Maximum Charge Current TRUE (MPPT) 80A Maximum PV Input Current 18A Maximum Efficiency 98% PHYSICAL Communication Interface RS323/GPRS/Wi-Fi OPERATING ENVIRONMNET Humidity 5% to 95% Relative Humidity (Non~Condensing) Operating Temperature 0°C~55°C Storage Temperature -15°C-~60°C
-
